iOS Enrollment - How to perform DEP setup.

Hello and Welcome to WeGuard Enterprise Visual Knowledge-base Series.

In this KB article, We will explain how to perform DEP setup which is a part of iOS enrollment. This step is usually performed after the APNS Setup.

• Login to WeGuard Console with valid credentials.

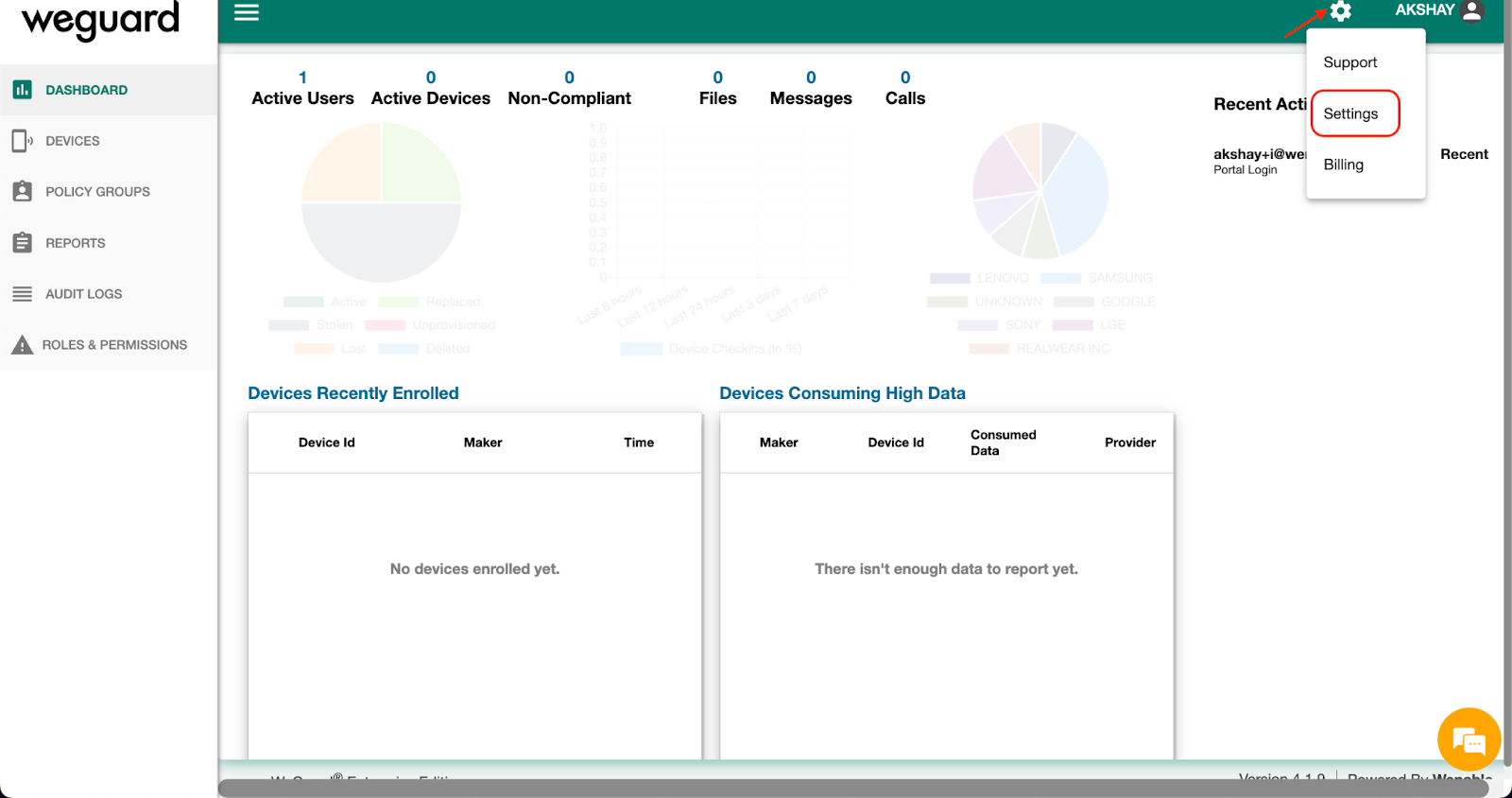

• Click on the cog wheel and select settings which can be found at the top right corner.




• Click on the ‘IOS Certificate Details’ and select the ‘DEP’ tab as shown in the images.

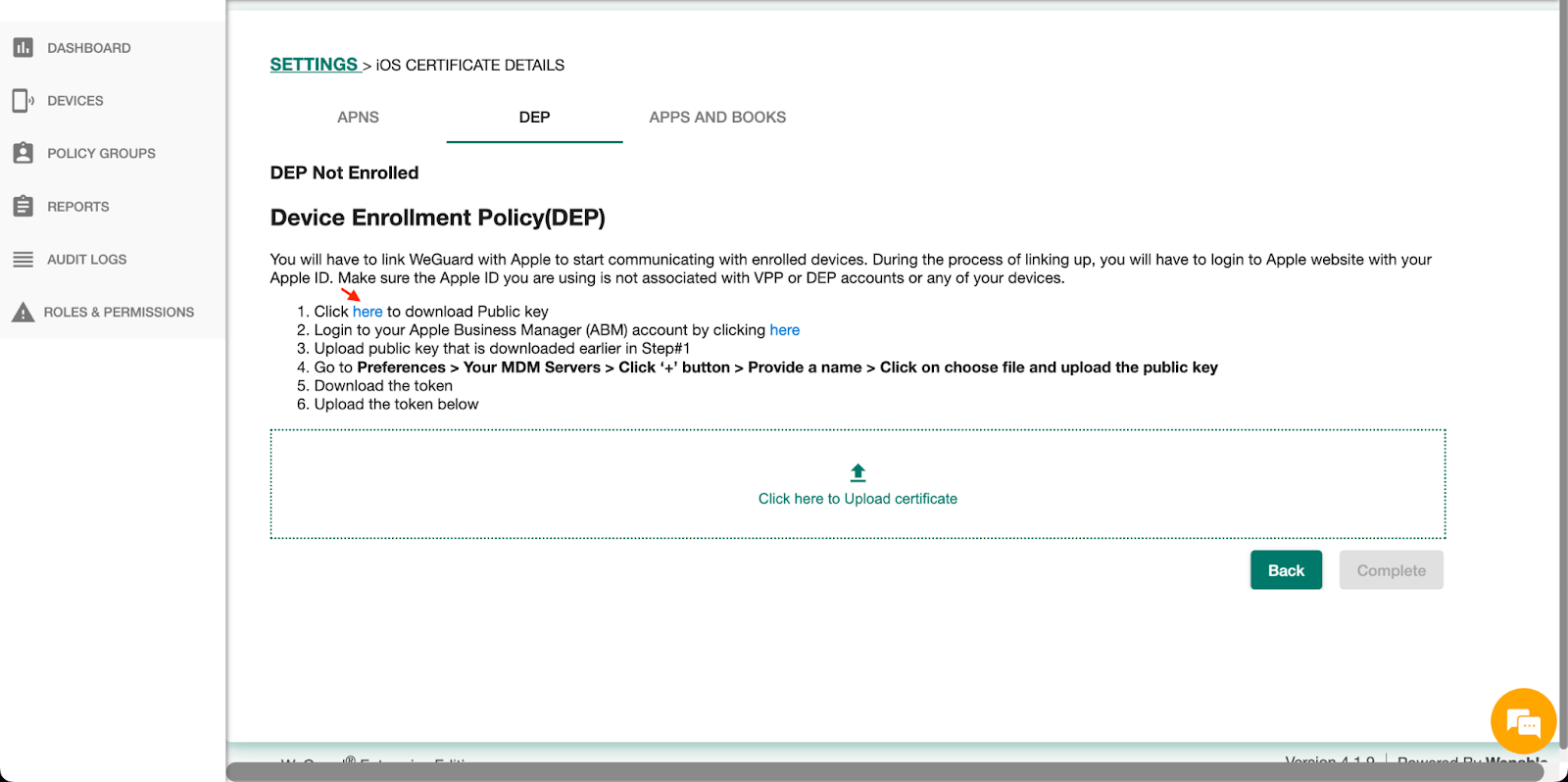

• Let’s commence the setup process by clicking on the ‘here’ link as in step 1 mentioned in the DEP setup process on WeGuard console. This will download a ‘.pem’ file.




• Click on the ‘here’ link as in step 2 mentioned in the DEP setup process on the WeGuard console. This will redirect you to your Apple Business Manager portal.
• Now login with your ABM apple id.

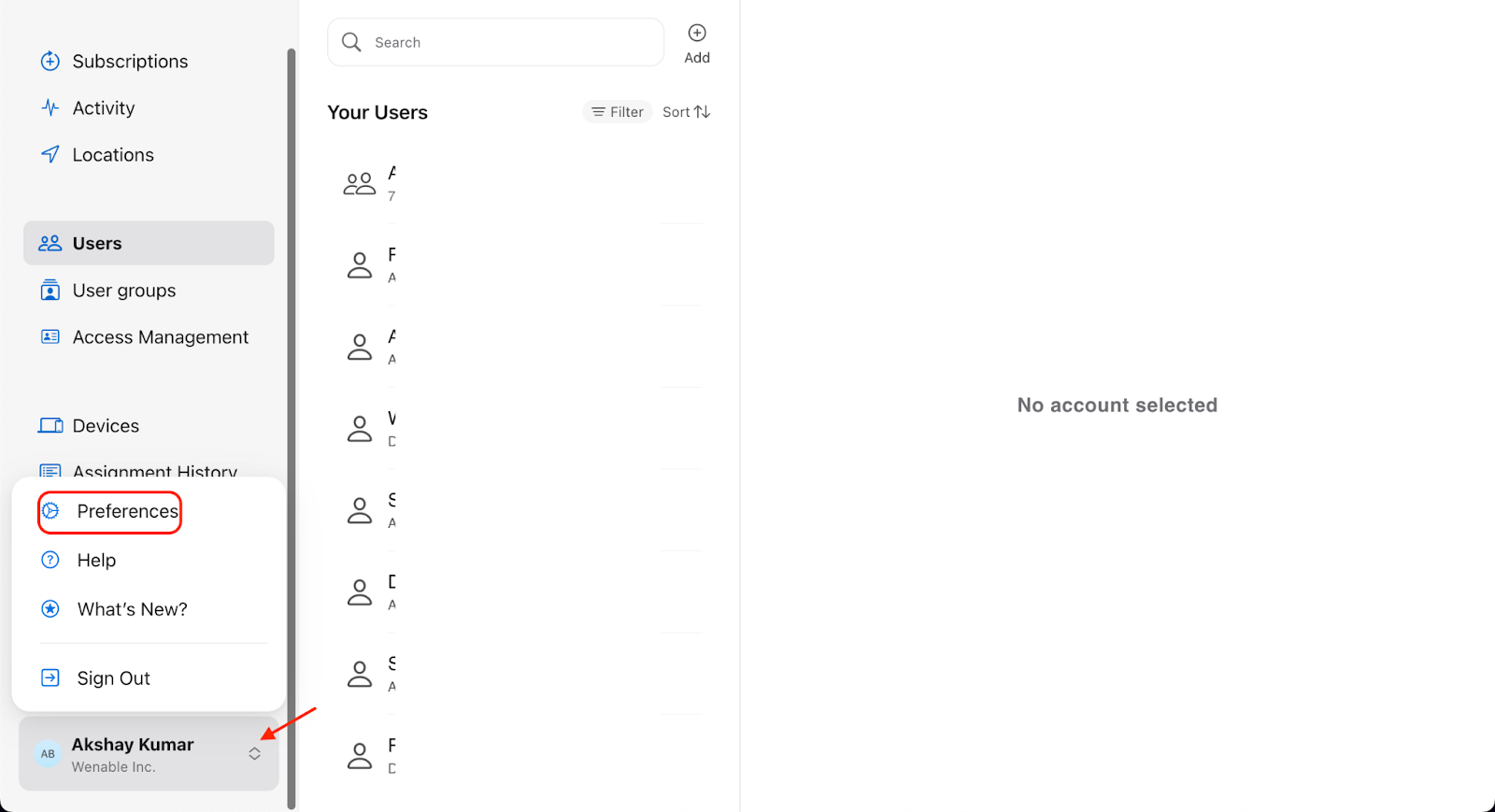

• Once you’re logged in, Please click on Profile -> Preferences which should appear on the bottom left corner.

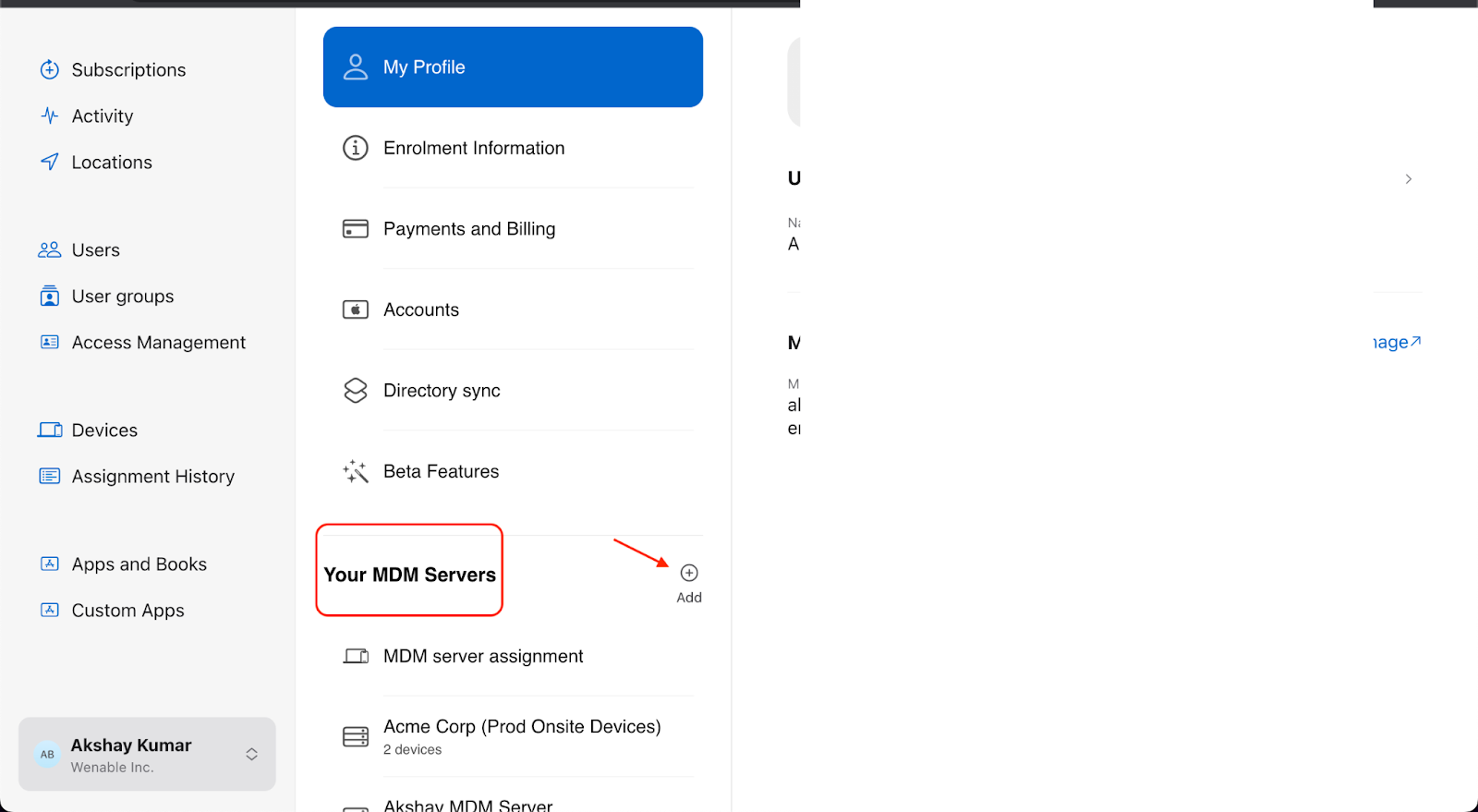

• Now create a new MDM server by clicking on ‘+’.

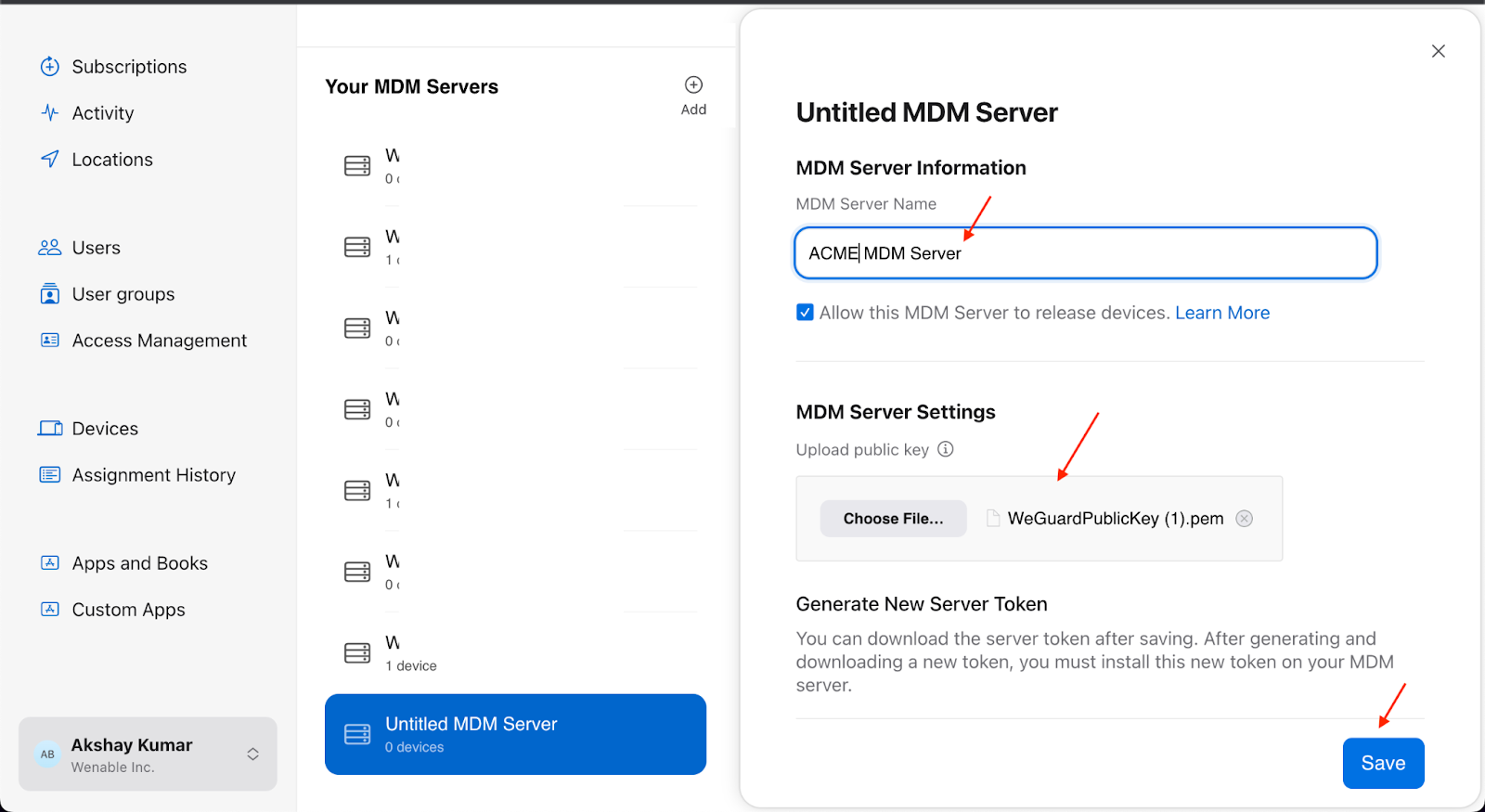

• Enter a suitable name and then click on ‘Choose file’ and then upload the public key (.pem) file which was downloaded previously and click Save.




• The MDM server has been created.

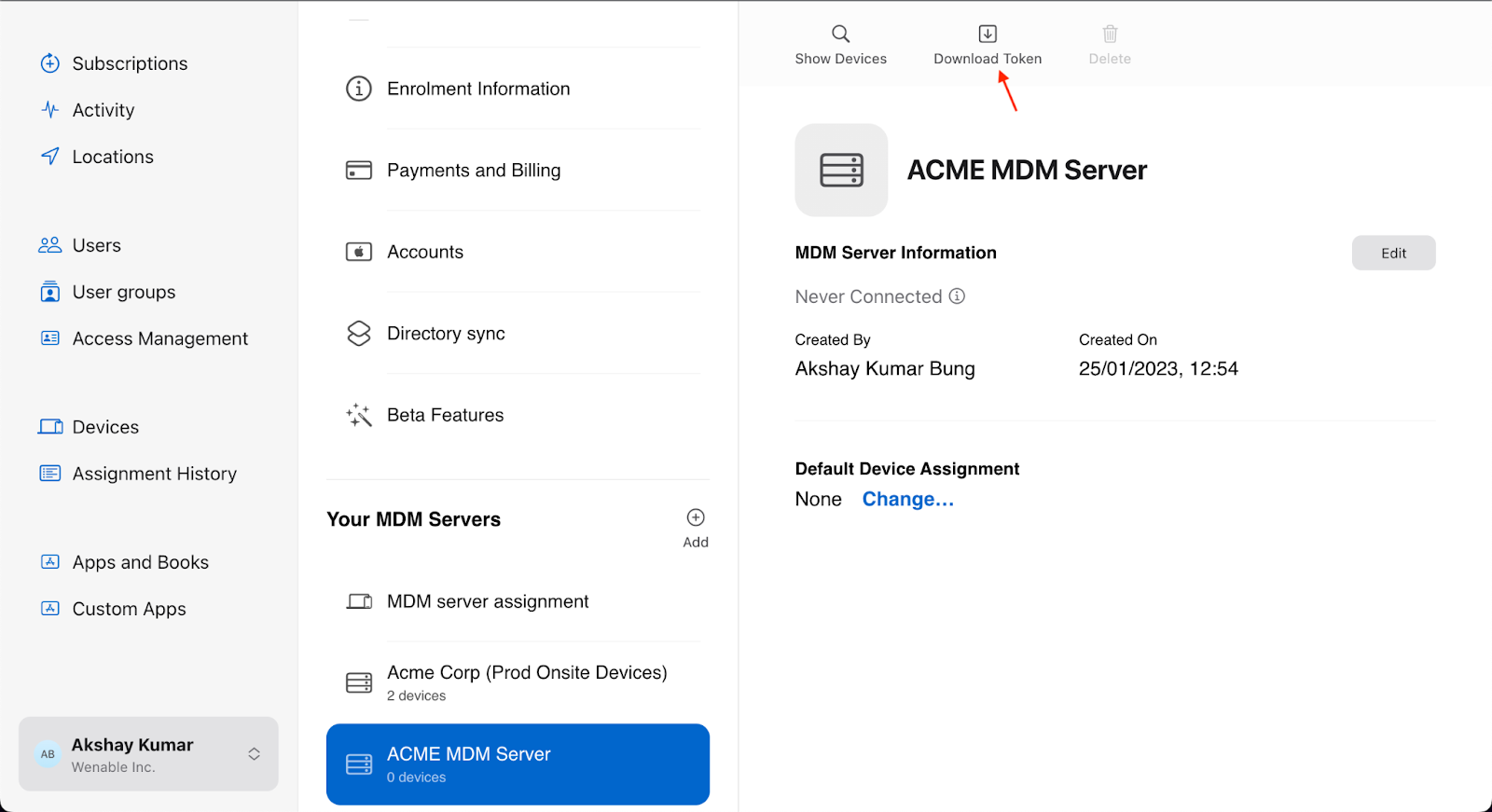

• Next click on ‘Download Token’ which downloads the MDM server token(.p7m file).

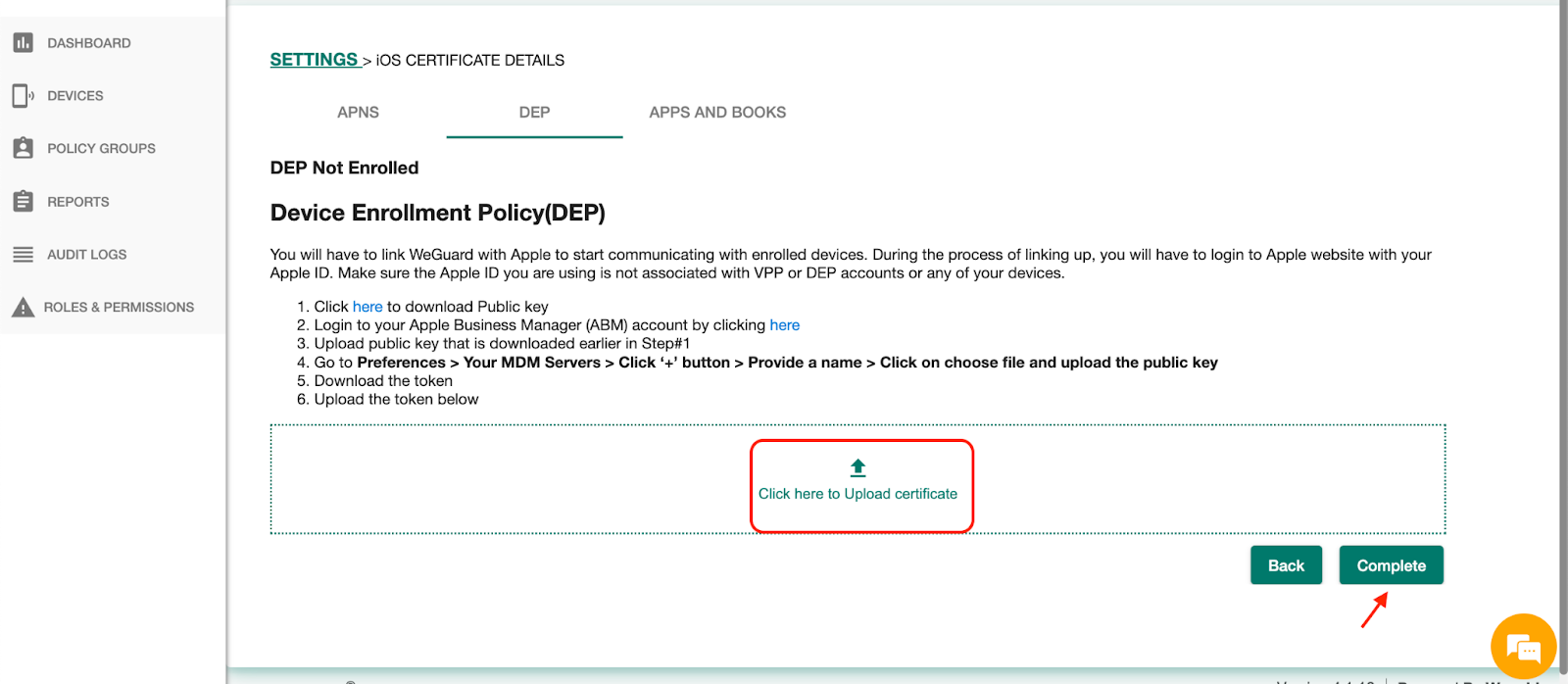

• Let’s go back to the DEP setup page on the WeGuard console and upload the previously downloaded MDM server token(.p7m file) and click complete.

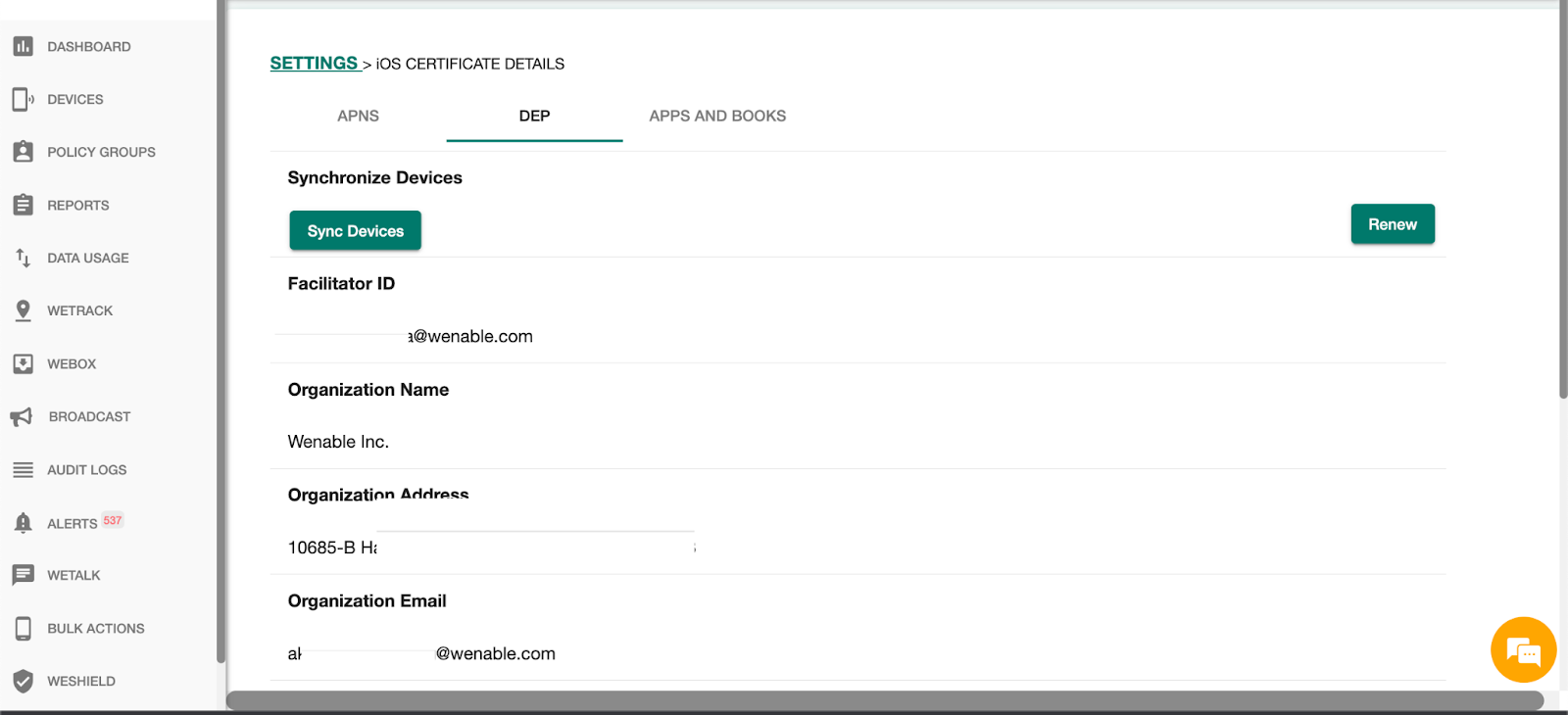

• DEP setup has been completed and you will be seeing a page something like this below.




• Upon clicking ‘Sync Devices’, the devices in the ABM account appear on the WeGuard console in an unprovisioned state.





Note: Devices on the ABM account must be assigned to the appropriate MDM server. To understand device assignment, you can click on this link.

We hope this article was useful. Thank you for reading.

For more WeGuard insights, please explore the Visual Knowledge-base Series

For more details, please do visit https://www.weguard.com

If you need any help on this, do call up WeGuard Support +1 833-936-2253 or or contact WeGuard Support Email.
