QR Code Enrolment - How to enrol Android devices using QR code?

QR Code Enrollment - How to enroll Android devices using QR code?

Hello and Welcome to WeGuard Enterprise Visual Knowledge-base Series.
In this KB article, We will explain how to enroll Android devices using QR code.

QR Code based enrollment is one of the several enrollment methods which can be used to activate Company Owned devices (Work Managed or KIOSK) in Android Enterprise (also known as Android For Work) . This procedure is applicable from Android 7.0 & higher.

This article provides step-by-step procedure to enroll & activate the devices using QR code.

The procedure is broadly categorized into two, they being

  1. QR code configuration.

  2. Device enroll with QR code.

QR Code Configuration:

Note : Applicable to Kiosk & Work Managed policies.

  • Login to WeGuard console with valid credentials.

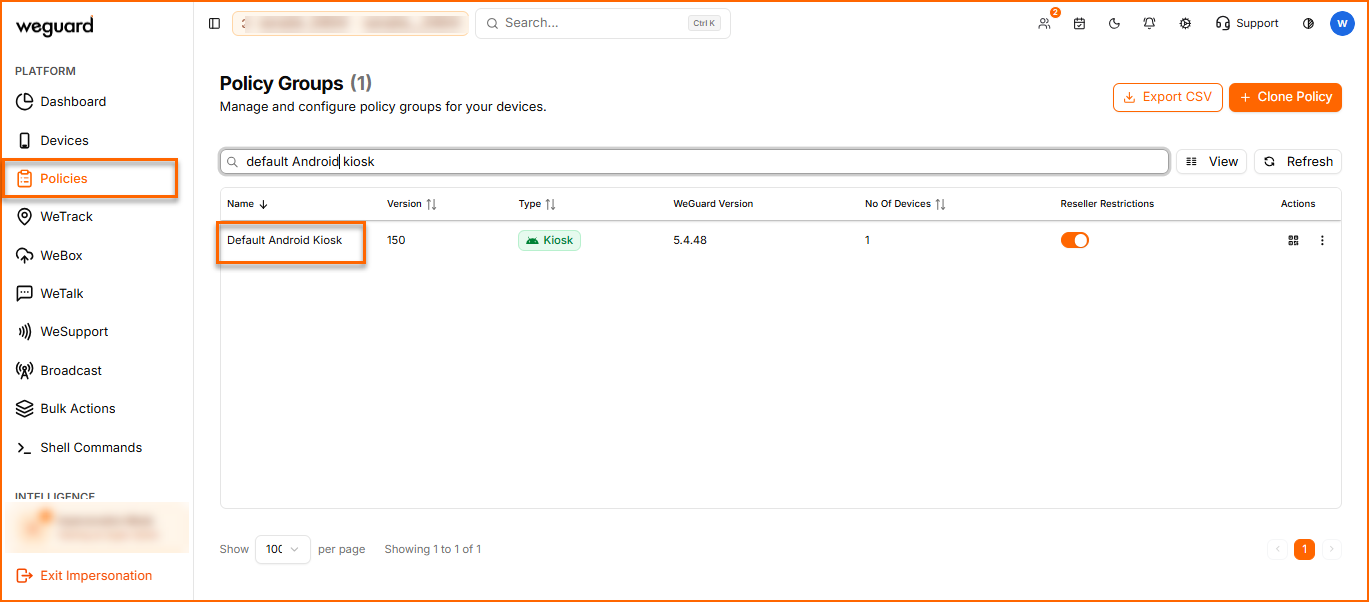

  • From left menu click on Policy Groups option.

  • Notice list of policies created in the account. Select the desired policy (make sure it is either Kiosk or Work Managed). By the way, for the newly created account, default policies would show up based on the selection while sign-up.

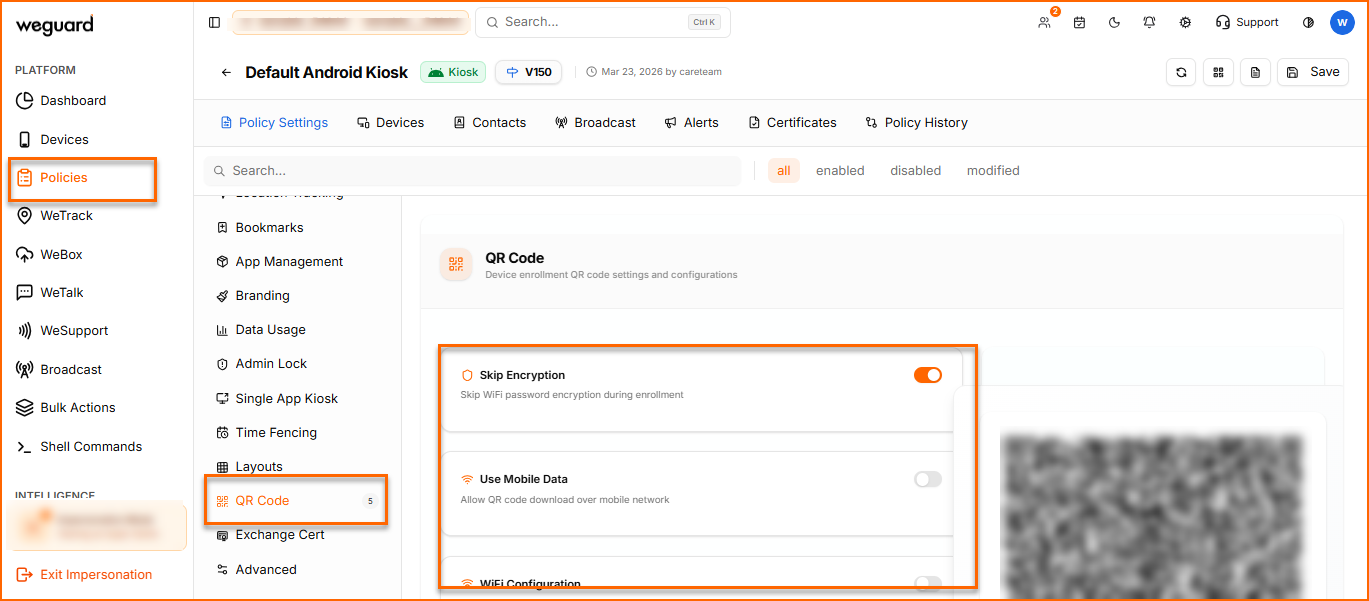

  • From the policy details, scroll down to find the QR CODE category and click on it.

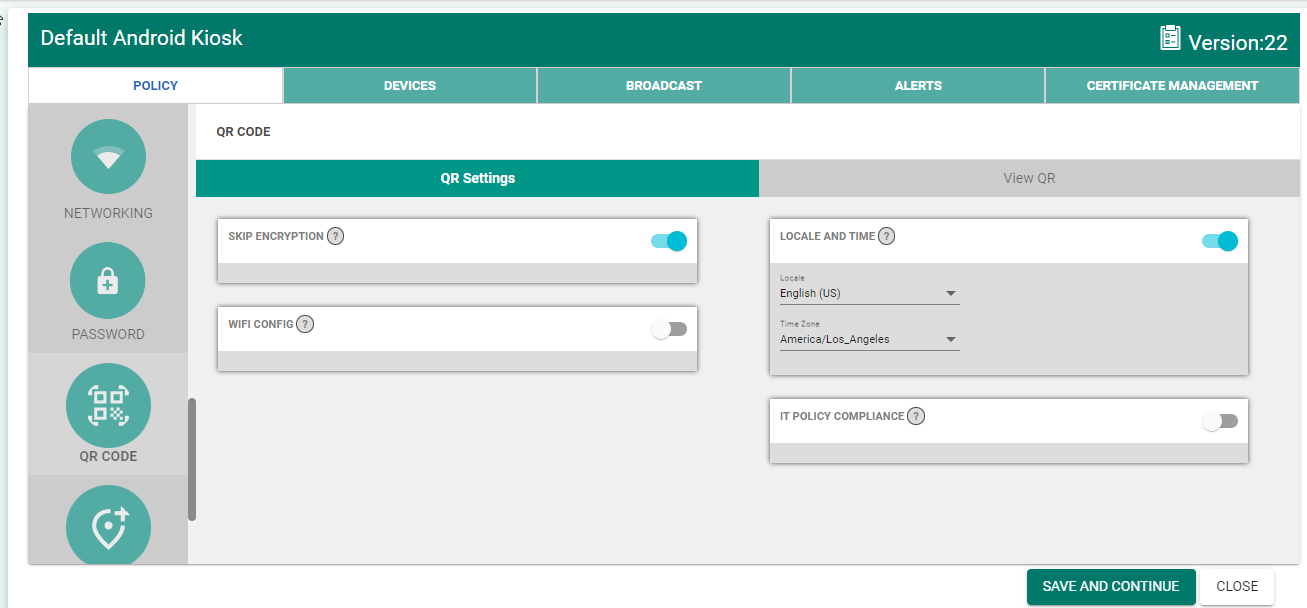

  • Notice QR settings with default configurations being,

    • Skip Encryption : Indicates whether device encryption can be skipped as part of device owner or managed profile provisioning. The default value is ON (toggle ON), meaning device data will not be encrypted.

    • Wi-Fi Config : Setup WiFi configuration for device to auto connect during setup process. The default value is OFF (toggle OFF), meaning Admin will not be able to configure Wi-Fi details.

    • Locale & Time : Setup locale & time. The default value is OFF (toggle OFF), meaning device language & time zone will not be configured.

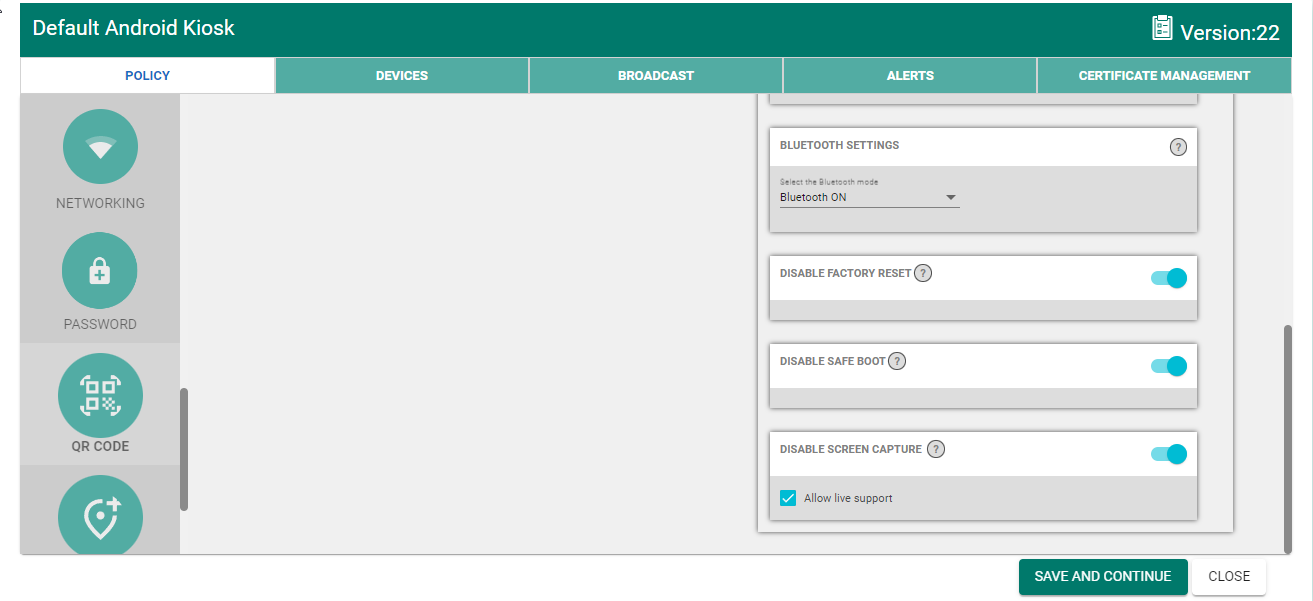

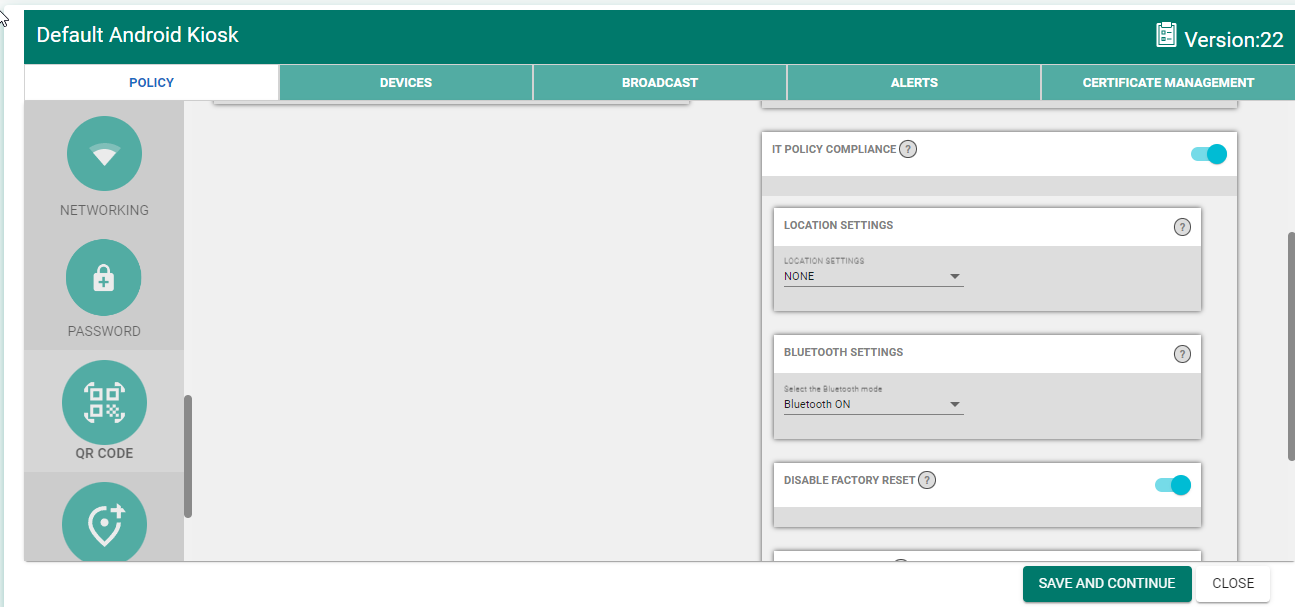

    • IT Policy Compliance : Configure the policies such as - Location Settings, Bluetooth Settings, Disable Factory Reset, Disable Safe Boot, Disable Screen Capture.





  • Let's go over the procedure to configure Wi-Fi details

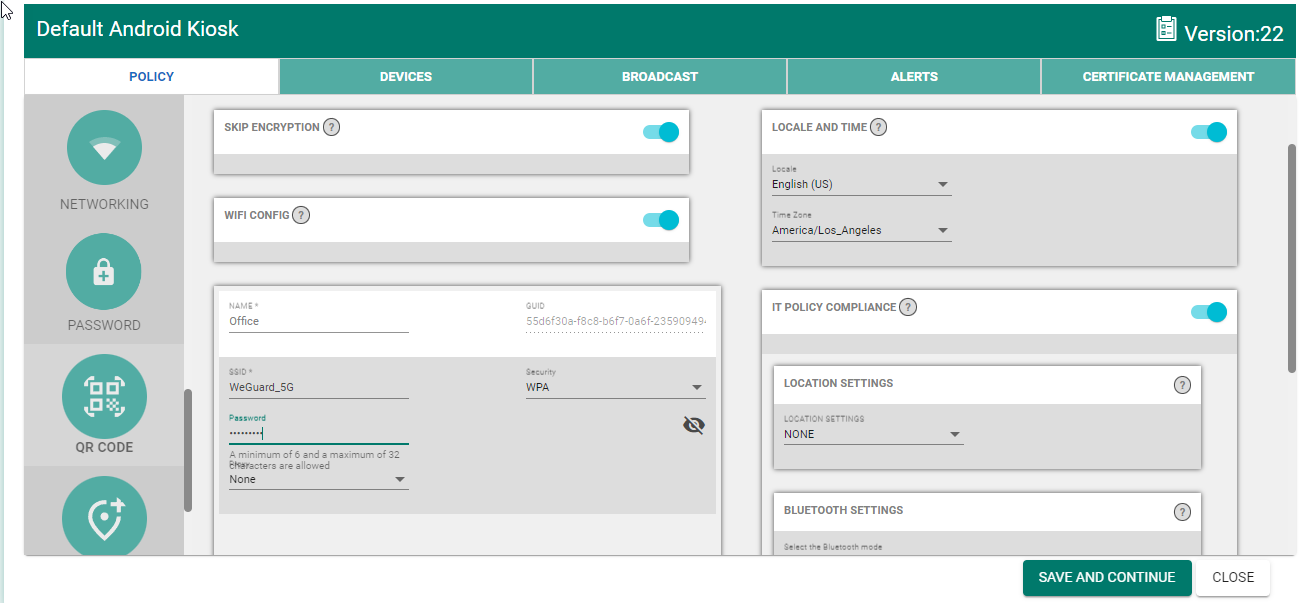

    • Enable WiFi Config option.

    • Enter SSID, Security Type & Password.

    • Proxy settings will be OFF, if there is proxy server setup provide the details by choosing Manual or Automatic.

  • In the same way, admin can enable "Locale and Time"

    • Enable "Locale and Time" option.

    • Choose Language from drop down. The default is English (US).

    • Choose the Time zone from drop down.



  • To embed WiFi, Locale & Time to policy QR click "SAVE AND CONTINUE".

  • To view the QR, the admin can either click on "View QR" or go back to the policy group page and click on the QR code icon.

  • This completes the QR configuration part.


Device enroll with QR Code:
Prerequisite : The device is a new/box piece. If it is used one, ensure a factory reset.

Note: For this use case, we will be using a Kiosk policy.

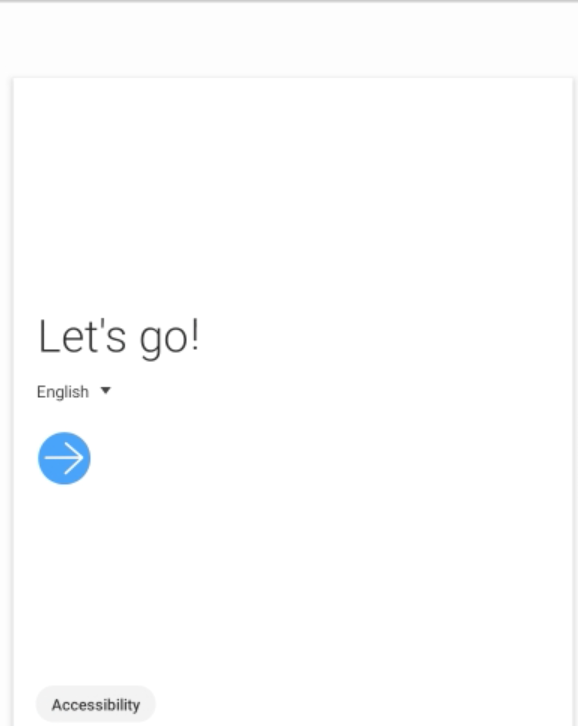

  • On the device welcome screen, tap 6 times.




  • A QR code reader will open on the device. The behavior slightly varies on different OEMs.

  • When the device prompts to scan the QR, scan the QR configured based on requirement (as above). In this case kiosk policy QR.




  • Notice that the device will not prompt for WiFi connection. It automatically connects to Wi-Fi (configured) and redirects to  WeGuard installation.
  • Following are some screenshots which depict the process of enrolling. These screens may look different depending on different OEMs

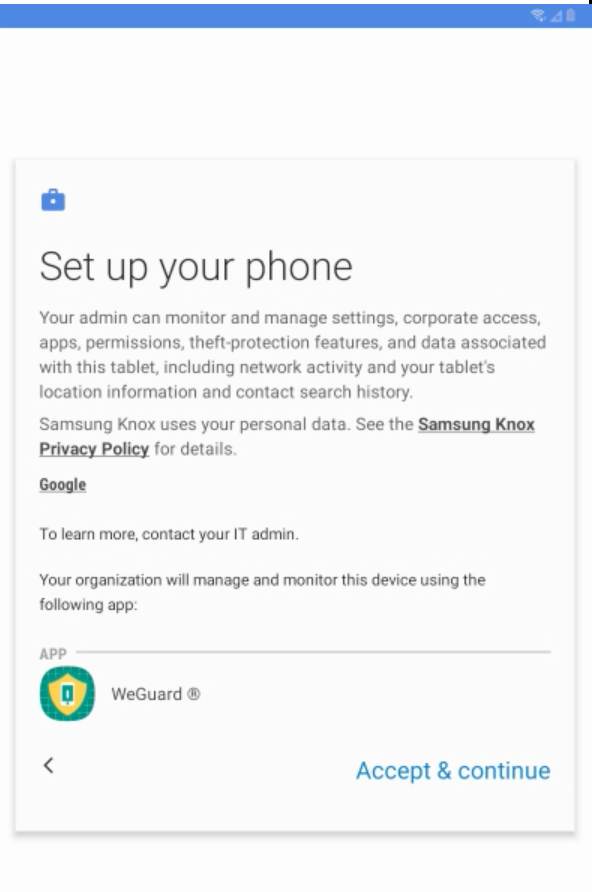

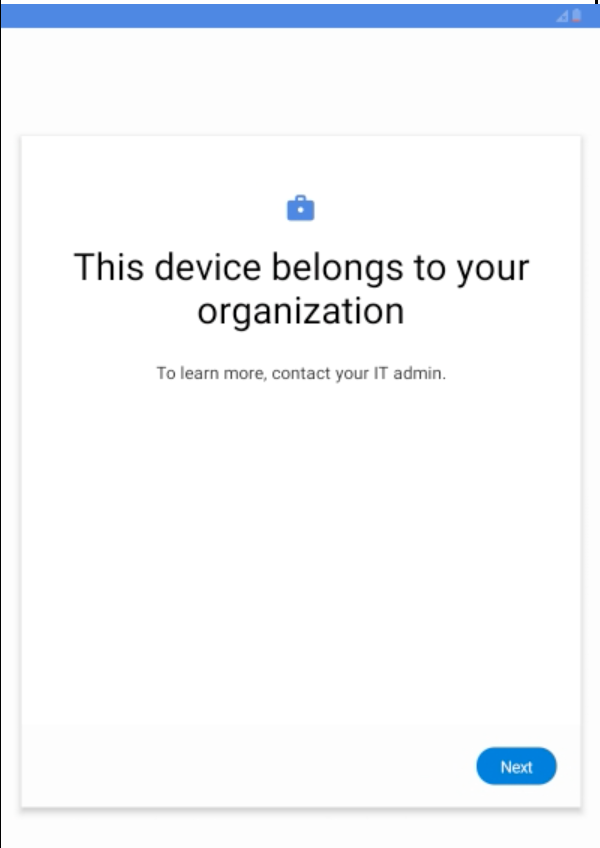

  • The image below informs that the particular device belongs to the organization.

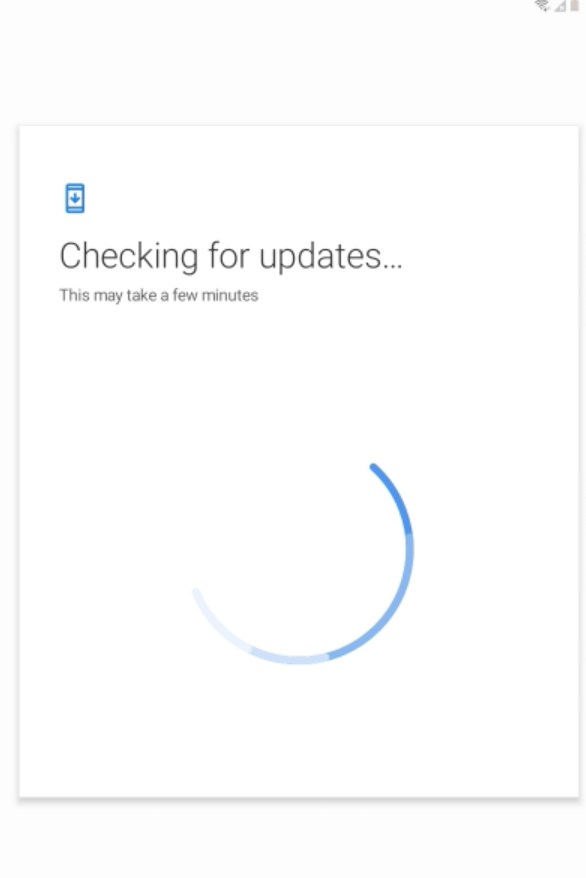

  • The device is getting ready for setup.



  • Need to click ‘Accept & continue’.

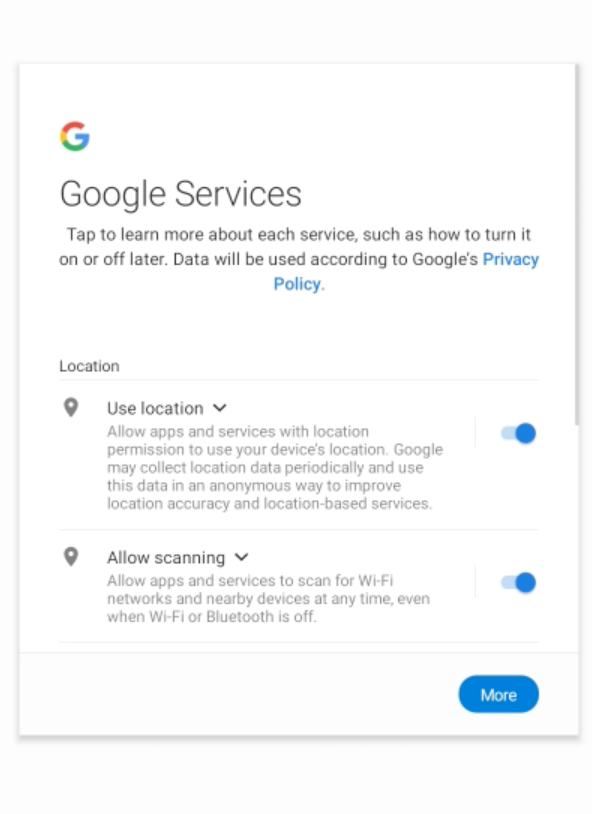

  • Need to click ‘More’ and then ‘Accept’.

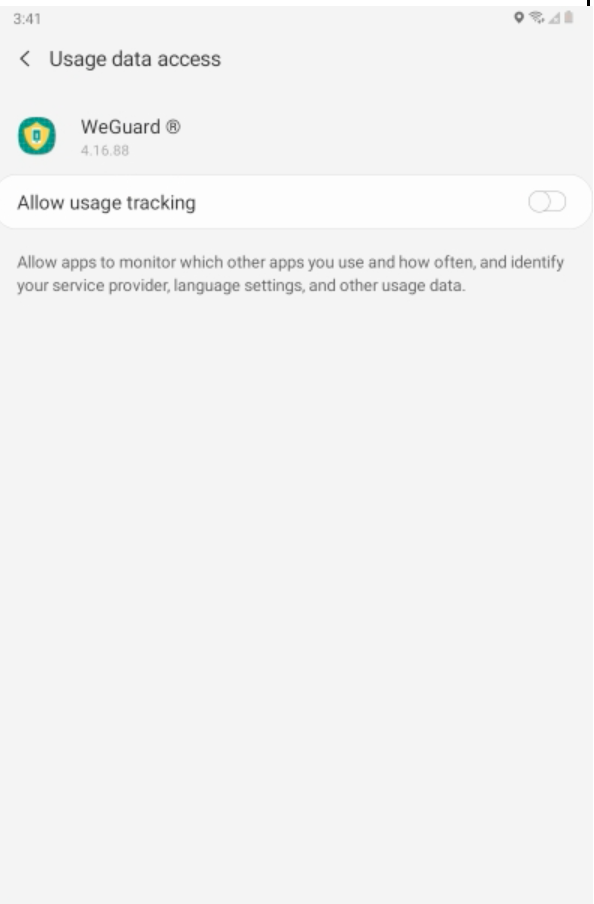

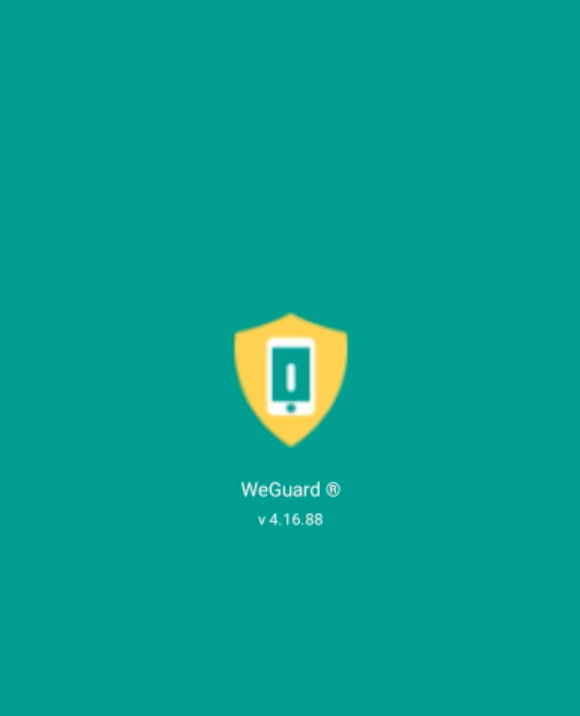

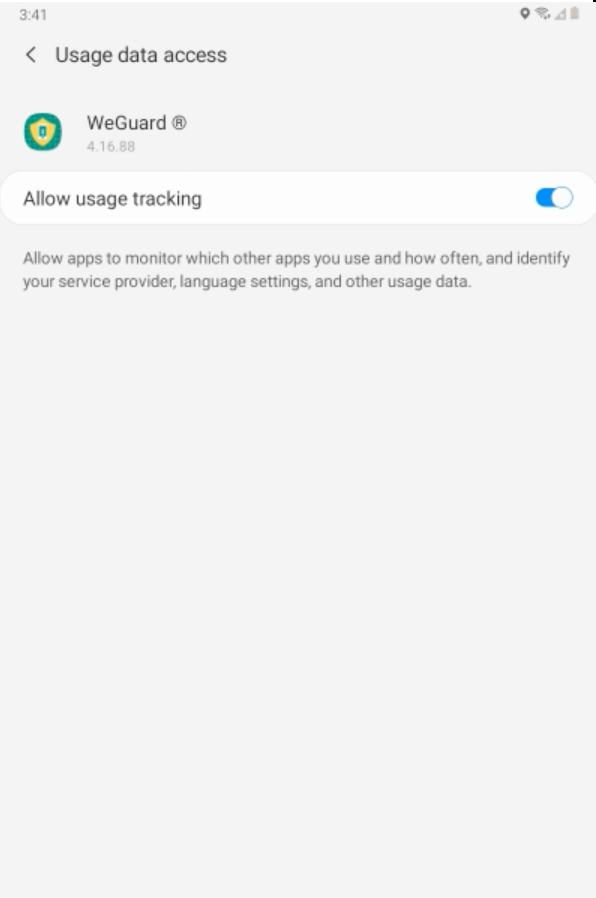

  • Now WeGuard automatically launches and gets activated and prompts for certain permissions which are to be given by the user.







  • The device would get the policy and impose the restrictions, install apps on the device.

  • Device is set up in Kiosk mode now and ready to use.



  • Once the enrollment, activation is done, the admin should find the device on the console in the Devices page.




We hope this article was useful. Thank you for reading.
For more WeGuard insights, please explore the Visual Knowledge-base Series
For more details, please visit https://www.weguard.com
If you need any help on this, do call up WeGuard Support at +1(737) 931-1410 Ext. 102 or  contact WeGuard Support Email   or Initiate   Chat
